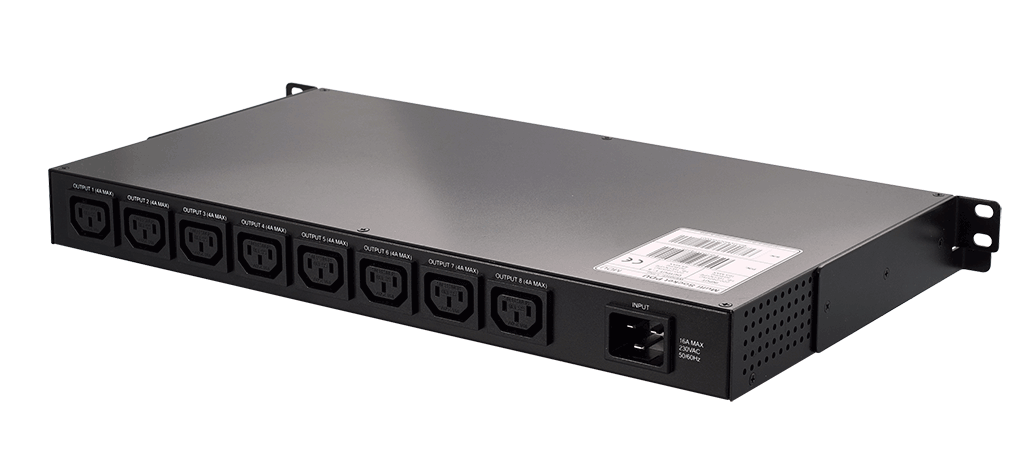

  • rear side

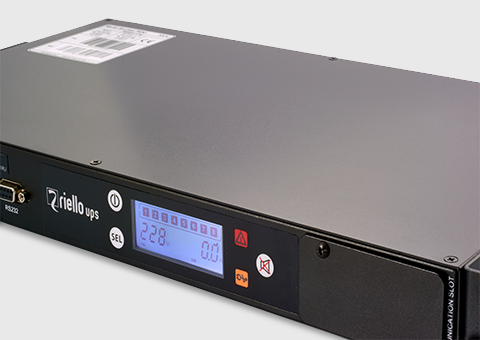

  • LCD panel view
Current Range: 16 A
1:1

Highlights

  • Distribute AC power from a single source to a maximum of 8 outputs
  • Input current of up to 16A with maximum output current of 4A per socket
  • LCD display shows the status of each output
  • Connectivity slot enables LAN connection and remote management
  • USB and RS232 communications slots



Multi Socket PDU offers data centre and IT managers an efficient and reliable means to distribute AC power from a single source to a maximum of 8 outputs. Designed for rackmounted installation in 19-inch cabinets.

User-friendly LCD display indicates the status of each output (“On” / “Off”) and shows information such as the input voltage and current, the current on each output, and any alarms currently activated.

Request Information »

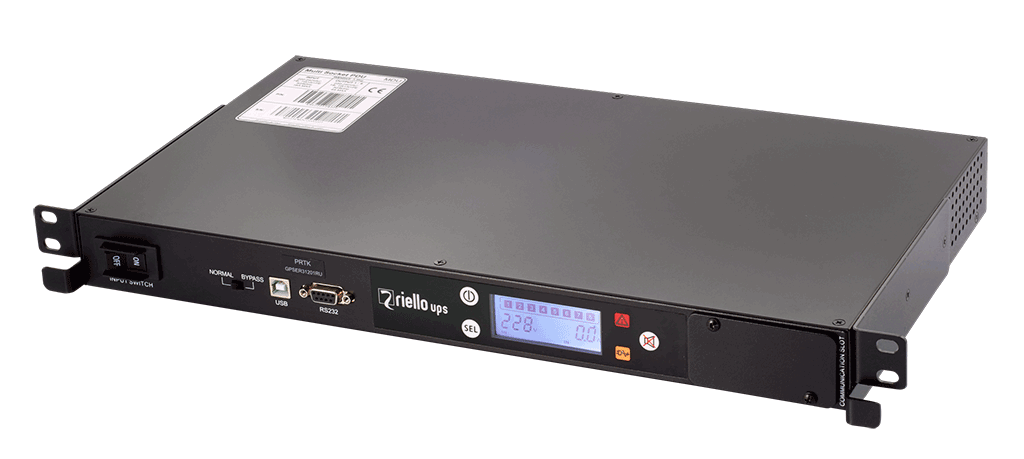

Multi Socket PDU is a high-performing and compact 1U power distribution unit that supplies AC power to up to 8 connected devices from a single source.



Easily Monitor And Manage Rack Environments

Multi Socket PDU incorporates a simple LCD display panel with 8 icons clearly indicating the status of each output. If the icon is illuminated, that indicates the output is receiving power, if it isn’t the output isn’t receiving power.

Flashing icons indicate an overload. The panel also shows real-time operating data such as the input voltage and current.



Best In Class Power Distribution

Provides power to 8 IEC sockets (maximum 4A output per socket) from a single 16A power input. You can easily set voltage and current thresholds for the input, as well as a maximum current level for the output.



User-Friendly Features

Compact 1U rackmounted PDU incorporates a manual bypass switch, USB and RS232 comms ports, and an expansion slot for additional communications boards.

Users Guides

User's manual Multi Socket PDU

Select File Language:
en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

Brochures and data sheets

Multi Socket PDU

16 A

Select File Language:
en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh
Technical specifications of the model
