Power Range: 1.5 - 3 kVA
1:1

Compactness and protection for rack systems

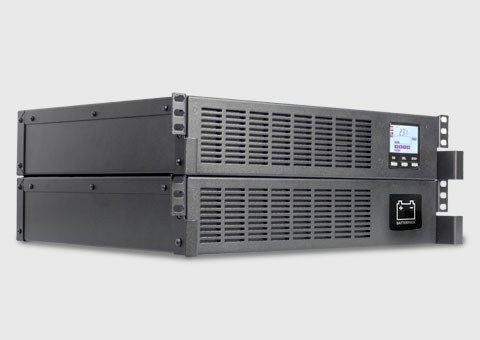

Sentinel Rack (SER) is a 2U rackmount UPS designed to protect critical rack servers, telecoms networks, data processing IT systems and security systems. Just plug and play, no complex installation. Ideal for Edge.



Compact Design

Sits at just 380 mm deep, making it a perfect choice to upgrade power at sites with 600 mm depth legacy server racks. Both versions are a standard 2U (87mm) in height.

Battery Optimisation

Wide input voltage tolerance (140-276 V) reduces battery usage, while in-built battery testing and protection against deep discharge optimise lifespan. 3000VA extended runtime version incorporates its own 6 A charger for longer autonomy.



Covered by Riello UPS’s 5 year extended warranty (*UK & Ireland only)

Sentinel Rack

HIGHLIGHTS

  • Rackmount UPS with simple plug and play installation

  • Depth of just 380 mm so ideal for upgrading legacy 600 mm racks

  • Compact design is ideal for Edge applications

  • Reduce power consumption with ECO and Smart Active modes

  • Built-in automatic battery testing enhances reliability

  • Extended runtime versions available (3000VA model)

  • Redesigned LCD display panel shows UPS status, load, and battery level

  • 5-year warranty provides additional peace of mind

Users Guides

Select File Language:

User's manual Sentinel Rack

1.5-3 kVA

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

User's manual UPSTools 3.0

RM908 Rev01

Download

Brochures and data sheets

Select File Language:

Sentinel Rack

1.5-3 kVA

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

Windows

Select File Language:

UpsTools 3.0.0 for Windows

Configuration software for Xp, 2003, Vista, 7, 8.x ,10, 11

Download
Technical specifications of the model

Sentinel Rack (SER) is a 2U plug and play rackmount UPS that protects critical rack servers without the need for any complicated setup or installation. Fan speed automatically adjusts depending on the load to minimise noise.

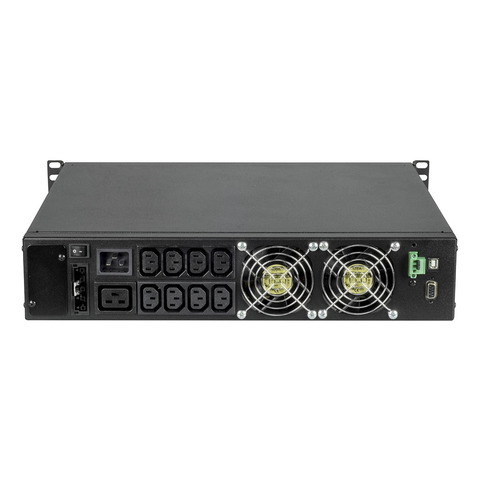

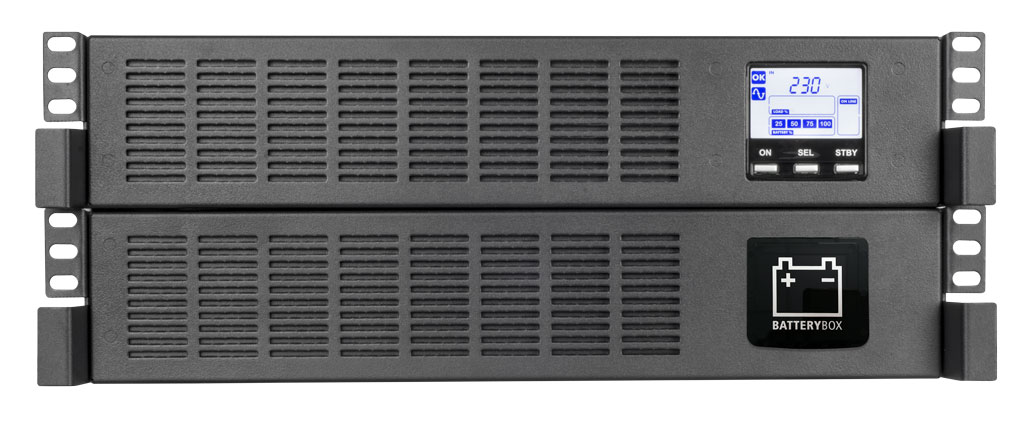

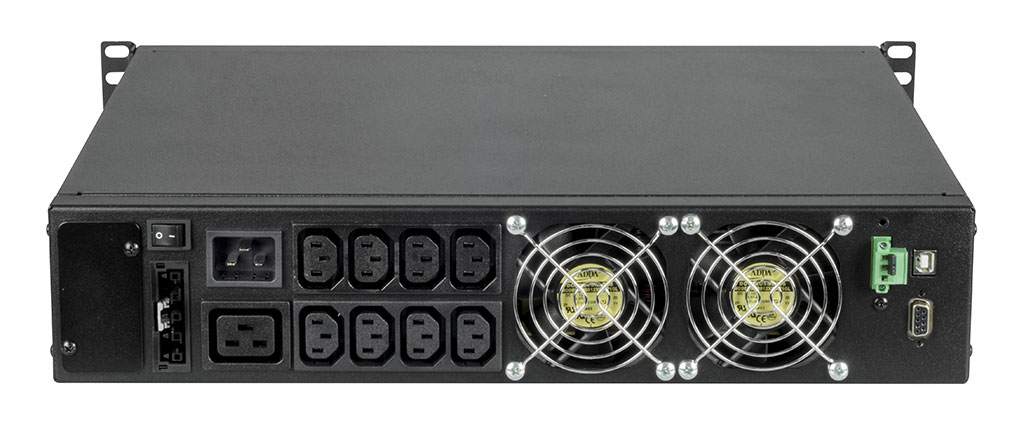

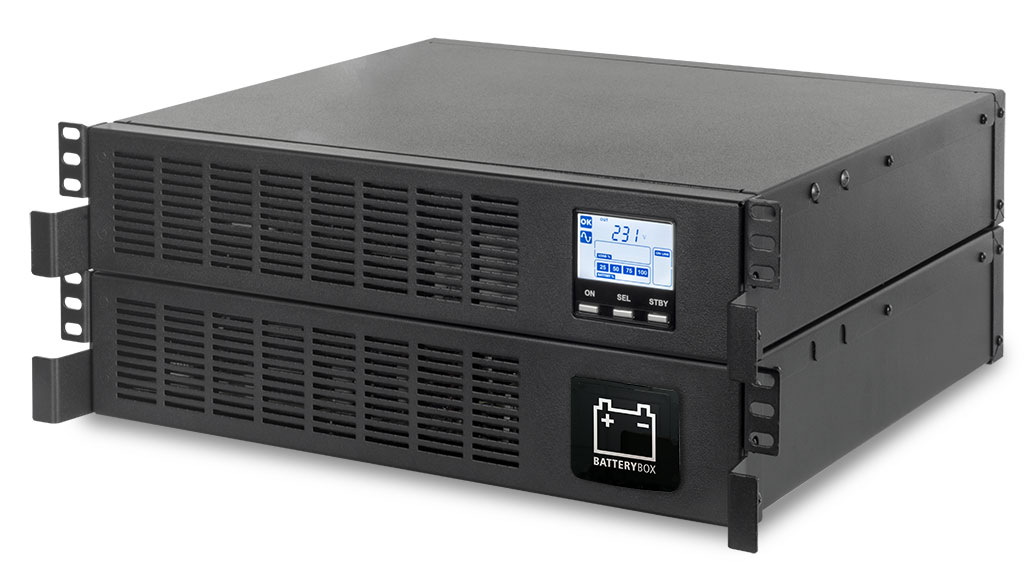

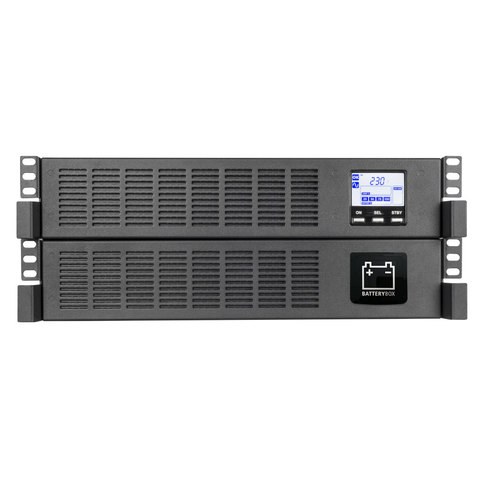

Single-phase system is available in 1500 VA or 3000 VA versions, the latter offering extended runtime of several hours thanks to its own powerful 6 A charger and external battery boxes.

5 year extended warranty as standard provides additional peace of mind.



Compact Design

The SER sits at just 380 mm deep, making it a perfect choice to upgrade power at sites with 600 mm depth legacy server racks. Both versions are a standard 2U (87mm) in height.



Protection For Edge Processing

Combining resilient online UPS protection with compactness and extended battery runtime, the Sentinel Rack is a cost-effective solution for supporting Edge applications and on-premises servers.



Power At Your Fingertips

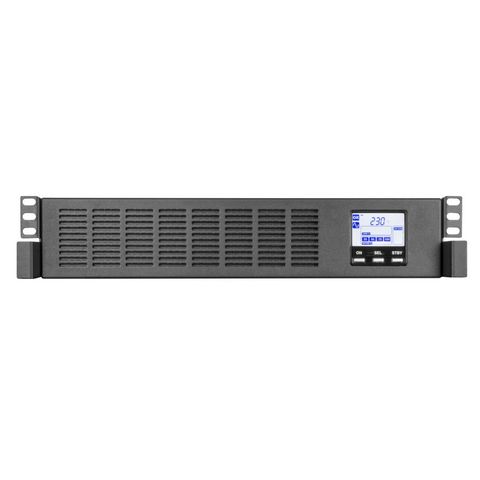

Sentinel Rack incorporates a completely redesigned LCD display panel that clearly indicates real-time information including input and output voltages, battery levels, and current UPS status. Toggle between operating modes at the simple push of a button.



Battery Optimisation

Sentinel Rack’s wide input voltage tolerance (140-276 V) reduces battery usage, while in-built battery testing and protection against deep discharge optimise lifespan.

3000 VA extended runtime version incorporates its own 6 A charger and enables longer battery autonomy.
