The biggest challenge of our time is sustainability. This is the reason why we developed the Multi Power2 Power Module based on the latest silicon carbide technology (SiC), which reduces cooling requirements whilst enabling more compact, more reliable, and more robust solutions.
The Power Modules could reach an efficiency of up to 98.1% in ON LINE double conversion, providing the best power supply to critical equipment whilst minimising operating costs and energy losses.
High efficiency is achieved even in the case of extremely low loads thanks to the Efficiency Control Mode, where the system will automatically activate only the required number of Power Modules, ensuring the highest efficiency and, at the same time, the required redundancy level.
Multi Power2 can also work in temperatures up to 40°C (without any derating), minimising the need for energy-intensive cooling systems.
The Multi Power2 has been conceived to meet the specific needs of each installation and quickly adapt to any load increase. Thanks to hot-swappable Power Modules, any increase in power can be done while the unit is still working in ON LINE double conversion without any disruption to the load.
All the major components of the UPS are modular and can be easily added to and/or replaced, minimising the site intervention cost whilst avoiding any downtime.
The range incorporates:

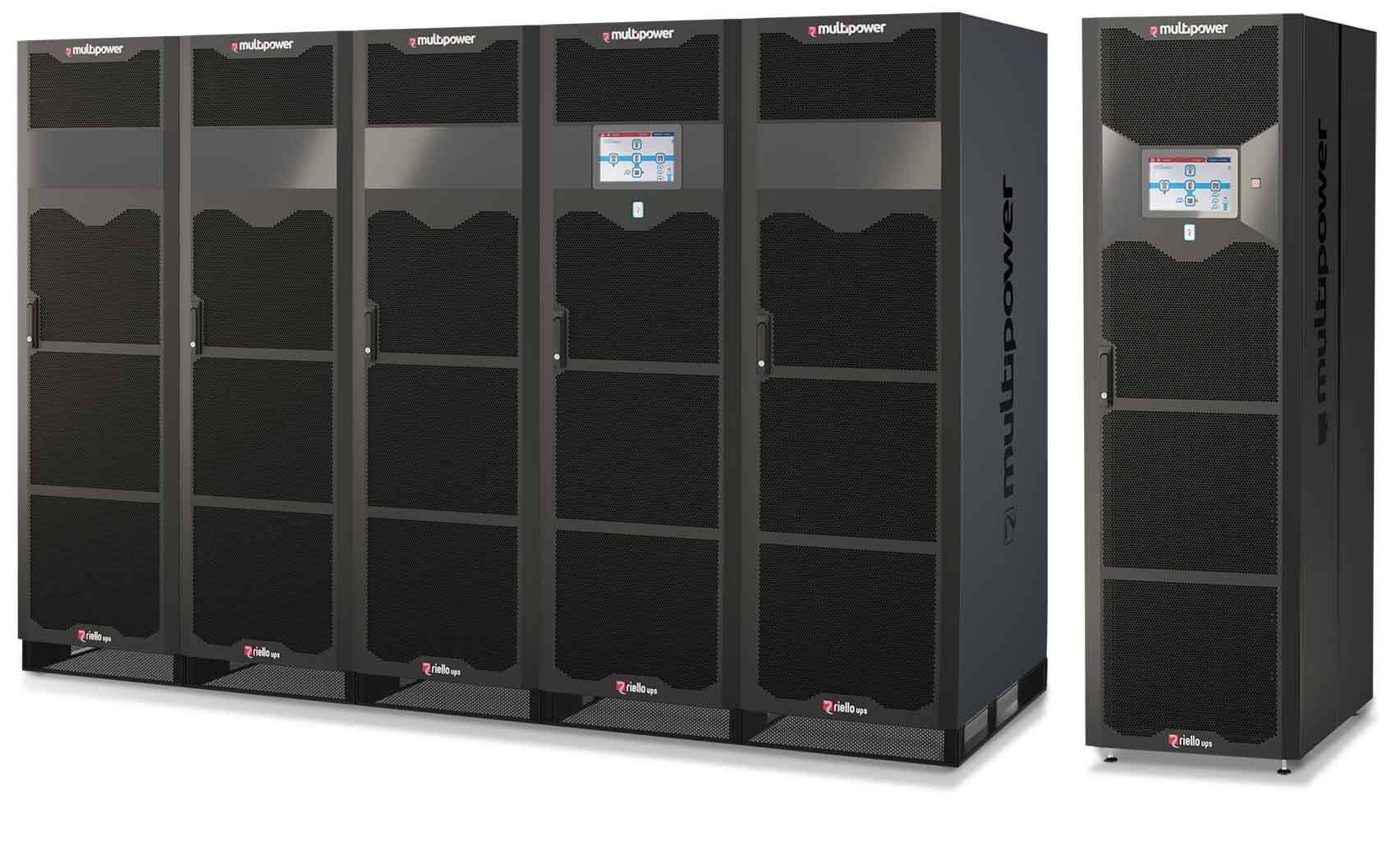

- MP2: up to 500 kW
- M2S: scalable from 1000 kW to 1600 kW
The MP2 chassis can hold up to 8 Power Modules, while M2S has capacity for:
- M2S 1000 = up to 15 modules (20 slots in total)

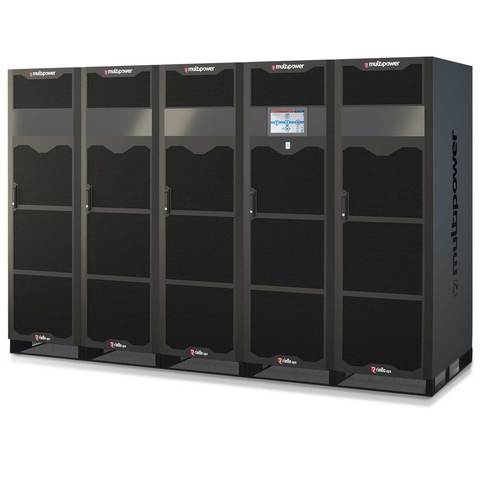

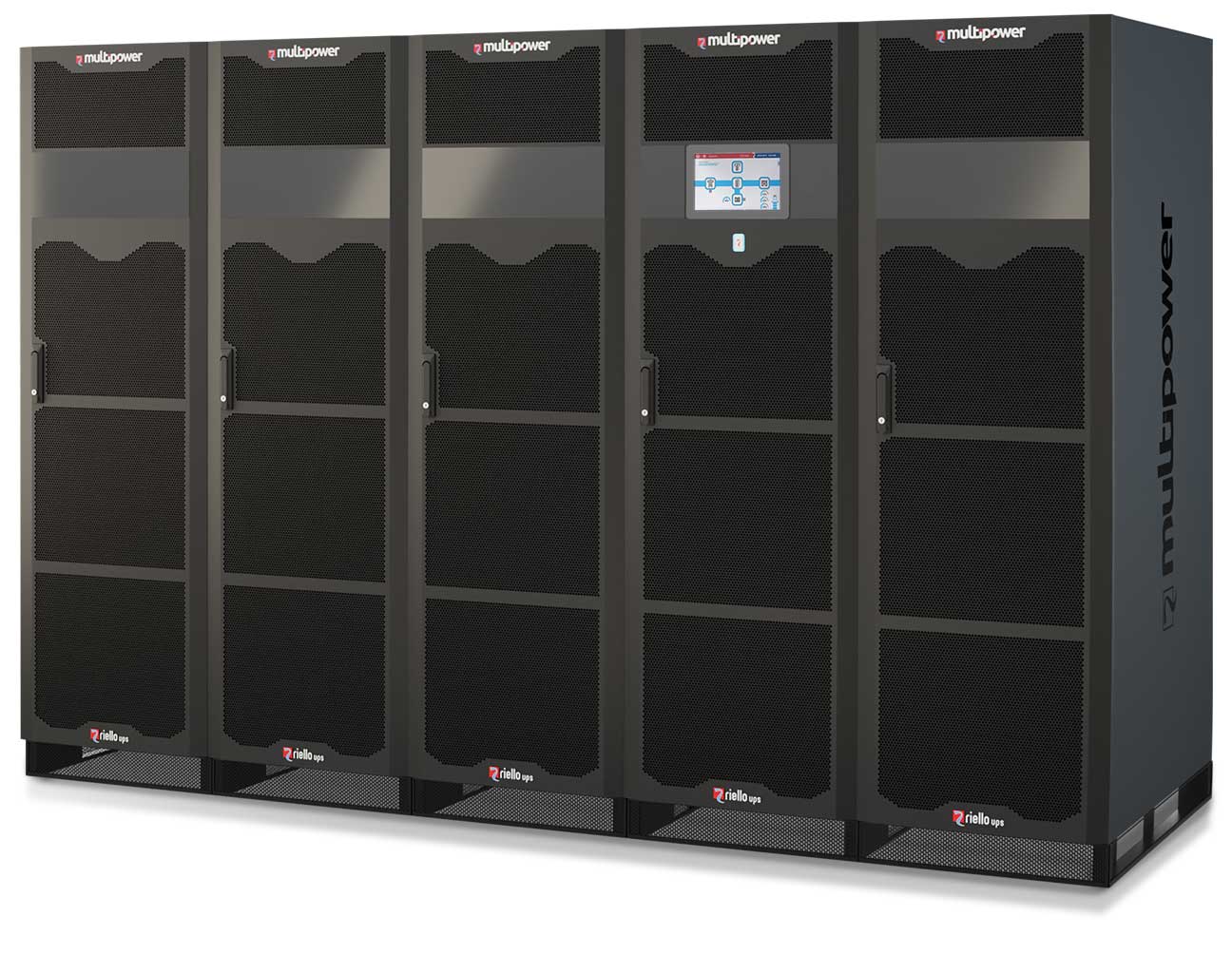

- M2S 1250 = up to 19 modules (20 slots in total)
- M2S 1600 = up to 24 modules (30 slots in total)
The spare slots are designed to offer users flexibility in terms of redundancy.
Several configuration and frames are also available:
- PCM: very compact solution with integrated manual bypass.
- PC0: unit supplied with unique I/O and without switches to simplify the integration with the existing electrical infrastructure and to meet any space constraints.
- PCS: fully integrated, for a complete, simple and very reliable installation, with main input, bypass, manual bypass and output switches.
Reliable & Resilient
The Multi Power2 is extremely reliable as it is designed to avoid any single point of failure. This principle is applied to all the parts of the unit, even to the internal communication structure, which is completely redesigned and made with two separate and fully redundant high-speed buses.
To provide the highest level of quality and process control, each component of the system, from the modules to the cabinet, is designed and manufactured in Italy. All modules and full units undergo specific tests to verify that each component operates correctly.
All collected measurements and data are analysed to keep improving our products and provide our customers with the most up to date technologies. To enhance the lifespan of the UPS, each module incorporates status counters, as well as temperature and humidity sensors, providing real-time analytics for operators.
Furthermore, thanks to embedded intelligence, power computing capacity, and outstanding connectivity, we can monitor remotely the status of the UPS and provide dynamic and bespoke after sales services.
