This adapter enables you to use Riello UPS communications cards such as NetMan 208C or MultiCOM 302 via an RS232 port.
It is designed for use with legacy UPSs that don’t have a communications card slot, or for UPS systems limited by having just one expansion slot.
Supplied with a 12Vdc external power adapter.
Adapter for legacy UPS without a communications card slot
Also for use with UPS that only have one expansion slot
Compatible with NetMan 208C and MultiCOM 302
Connects to the UPS via an RS232 serial connection port
Supports 10-30Vdc power supply range
Simple, user-friendly installation
Select File Language:
Connectivity
Select File Language:
Quick start Slot Adapter

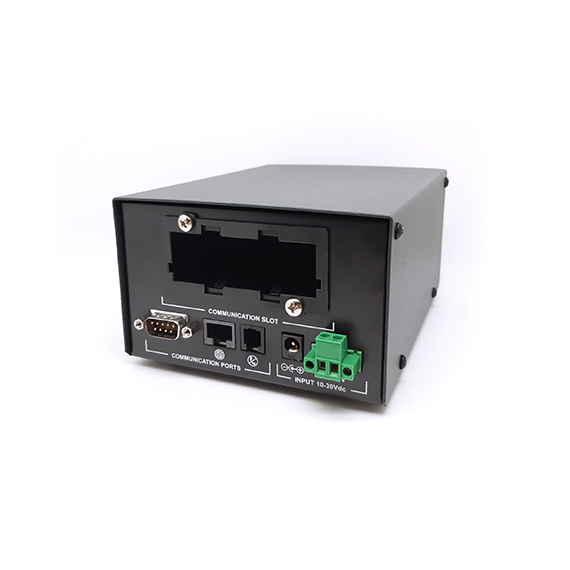

This handy communication card adapter is the ideal solution for use with legacy UPS systems that don’t have a communications card slot. It’s also suitable for a UPS that only has one expansion slot.
Easy to use, simply remove the 2 retaining screws from the adapter, insert the communications card, and fix it into place with the screws.
Designed to support the Riello UPS devices such as NetMan 208C and MultiCOM 302.
Compatible with the entire UPS range. Power supply range: 10–30 VDC with removable terminal block.
Supplied with a 12 VDC power adapter.
