Power Range: 300 - 600 kVA

3:3

Smart, Scalable, Sustainable Power

Multi Power2 is the evolution of our modular UPS designed to raise the bar for efficiency, flexibility, and performance in high-density computing environments such as data centres and similar mission-critical applications.

Fully Scalable Solution

The MP2 offers a broad range of solutions (300-500-600 kW versions) that enable you to protect up to 2,400 kW with 4 UPS in parallel. Ultra-high efficiency and flexibility that help minimise both your upfront infrastructure costs and day-to-day running costs.

Proven Performance Guaranteed

A step forward in the technology of every component, from the power modules and cabinets through to internal communications structure, ensures even higher power density in a reduced footprint. Designed to avoid any single point of failure, while hot-swappable modules guarantee downtime-free maintenance and system expansion.

Best In Class Efficiency

New 3U 67 kW power modules capable of up to 98.1% efficiency in double conversion online mode, providing the best power supply to critical equipment whilst minimising operating costs and energy losses. Efficiency Control Mode ensures high efficiency at all load levels.

In addition to the MP2 range, the Multi Power2 family also incorporates the Multi Power2 Scalable (M2S) available in 1000-1250-1600 kw versions

Request Information

HIGHLIGHTS

Ultra-high efficiency up to 98.1% (ON LINE mode)
Efficiency Control Mode ensures high efficiency even at low loads
Best-in-class power density delivers performance in compact footprint
Risk-free ‘pay as you grow’ scalability
Downtime-free maintenance thanks to hot-swappable modules
Robust design eliminates any single point of failure
Optimise initial investment and maximise Total Cost of Ownership (TCO)
Smart Modular Architecture (SMA)

Brochures and data sheets

Select File Language:

Multi Power2

Technical specifications of the model

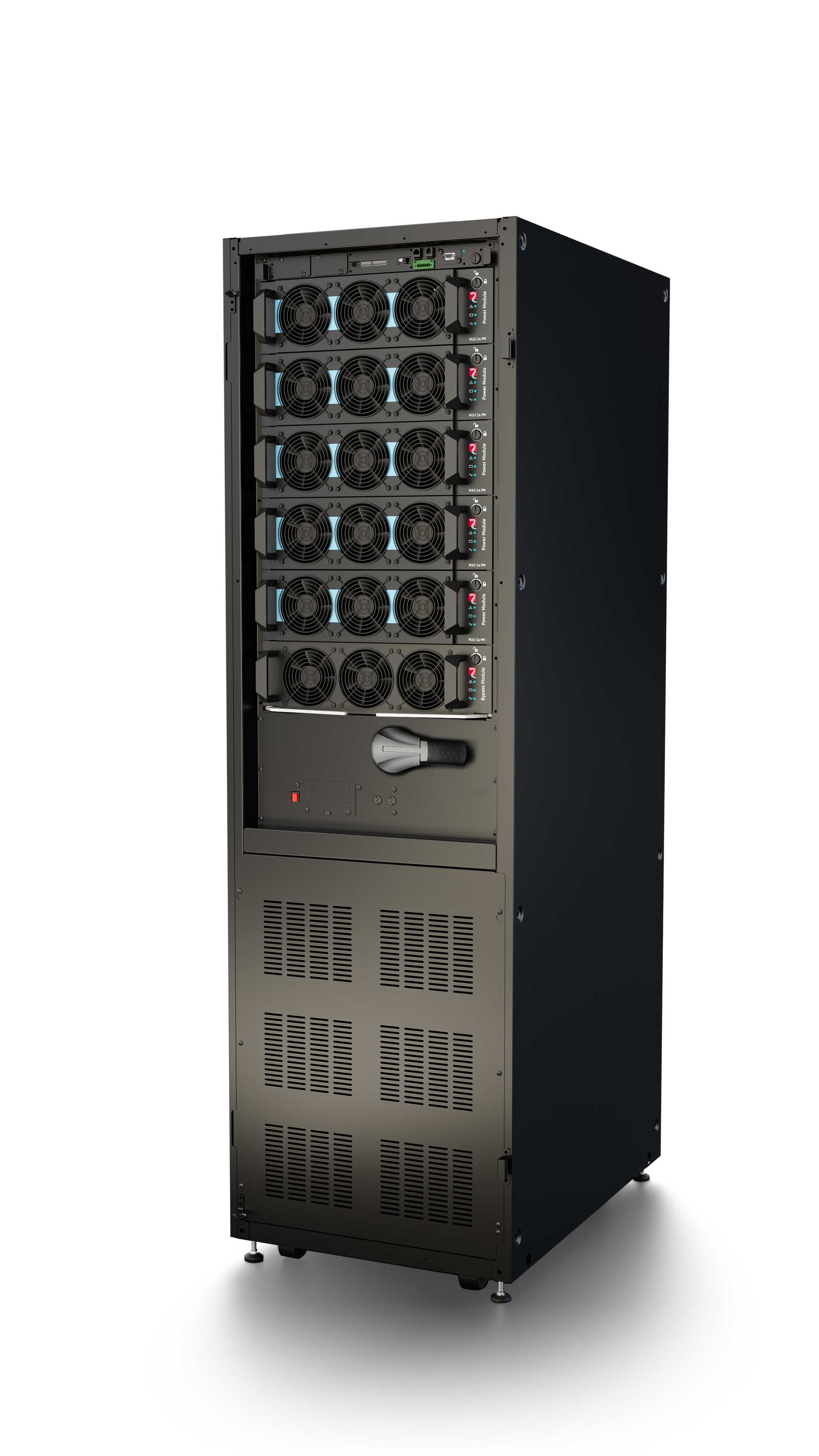

Models	MP2 300 PCM
OVERALL SPECIFICATION
Cabinet type	MP2 300 PCM Power Cabinet
Power Module nominal power (Named PM)	67 kW
Solution nominal Power	300 kW
Output power factor [pf]	1
Parallelable (up to)	4
Cabinet layout description	Up to 5 x MP2 67 PM BLUE or 5 x MP2 67 PM. Unit with manual bypass switch.
INPUT
Rated power	300000 VA
Voltage	380 / 400 / 415 V three-phase + N
Frequency tolerance	40 - 72 Hz
Power factor	0.99
BY PASS
Rated voltage	380 / 400 / 415 V three-phase + N
Voltage tolerance	From 180 V (adjustable 180-200) to 264 V (adjustable 250 – 264) referring to neutral (Ph-N)
Rated frequency	50 or 60 Hz (selectable)
Frequency tolerance	± 5% (selectable)
Number phases	3 + N
OUTPUT and INVERTER OUTPUT
Rated power	300000 VA
Active power	300000 W
Number phases	3 + N
Output Voltage	380 / 400 / 415 V three-phase + N
Waveform	Sinewave
Dynamic stability	EN62040-3 class performance 1 non-linear load
Frequency	50 or 60 Hz
Overload	125% for 10 min.; 150% for 1 min.
BATTERIES
Type	VRLA AGM / GEL; NiCd; Li-Ion; Supercaps
Type of charging	One level, Two level, Cyclic recharge (selectable)
ENVIRONMENTAL
Color	RAL 9005

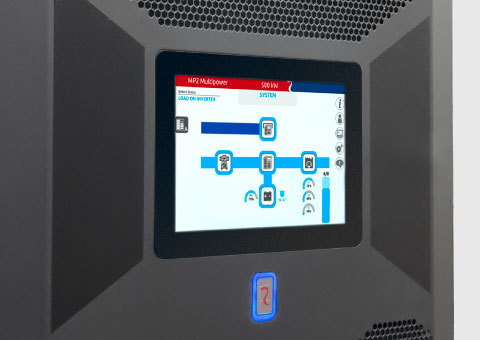

Communication	10” Graphic touch screen display – UPS Status led bar – 2 slots for communication interface, 5 input, 4 output signals and embedded NetMan 208
Protection rating	IP20 finger proof (either with cabinet doors open or close)
AC/AC efficiency	Up to 98.1% with MP2 67 PM BLUE (ON LINE mode)
Operating temperature	0 °C - +40 °C
Relative humidity	5-95% non condensing
Standards	European directives: LV 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive & Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111
DATA
Weight including PMs to reach nominal power	429 kg
Dimensions (h w d)	1995 x 600 x 940 mm
Input phases	3
Output phases	3

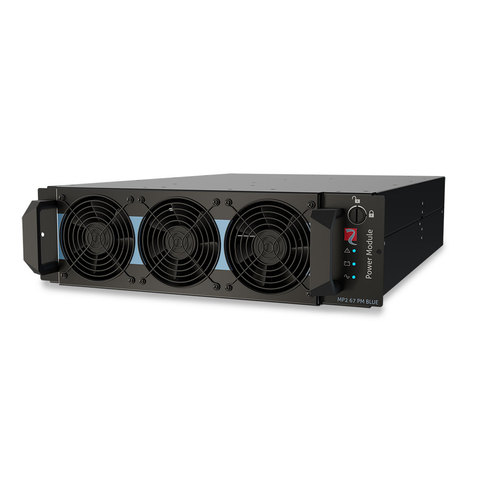

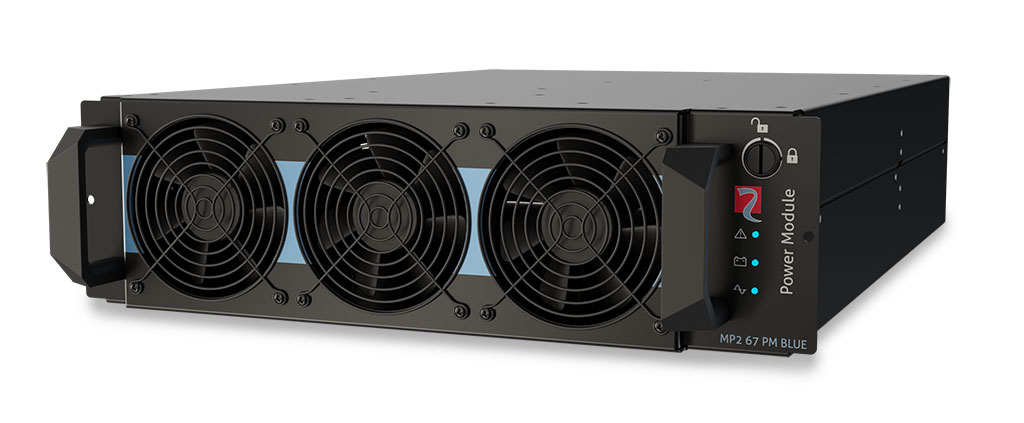

The biggest challenge of our time is sustainability. This is the reason why we developed the Multi Power2 power module based on the latest silicon carbide technology (SiC), which reduces cooling requirements whilst enabling more compact, more reliable, and more robust solutions.

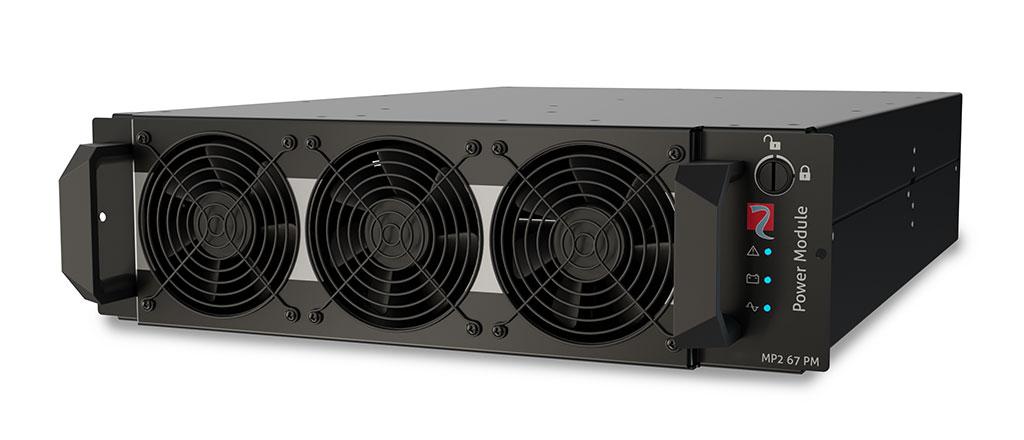

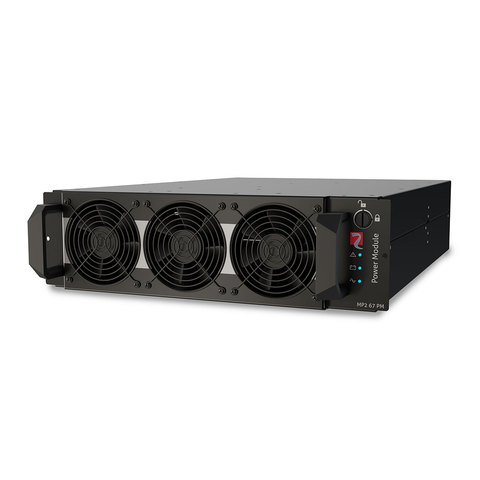

These new 67 kW power modules can reach a ultra-high efficiency up to 98.1% in ON LINE double conversion mode, providing the best power supply to critical equipment whilst minimising operating costs and energy losses. The standard IGBT-based 67 kW power module is still capable of delivering high efficiency of 96.5%.

High efficiency is achieved even in case of extremely low loads thanks to the sophisticated Efficiency Control Mode, where the system will automatically activate only the required number of Power Modules, according to the real-time load ensuring the highest efficiency.

Multi Power2 can also work in temperatures up to 40°C without any derating, minimising the demand and consumption of cooling systems.

Ultimate Flexibility

Multi Power2 has been conceived to meet the specific needs of each installation and quickly adapt to any load increase.

Thanks to the hot-swappable Power Modules, any increase in power can be done while the unit is still working in ON LINE double conversion without any disruption to the load.

All the major components of the UPS are modular and can be easily added and/or replaced, minimising the site intervention cost whilst avoiding any downtime.

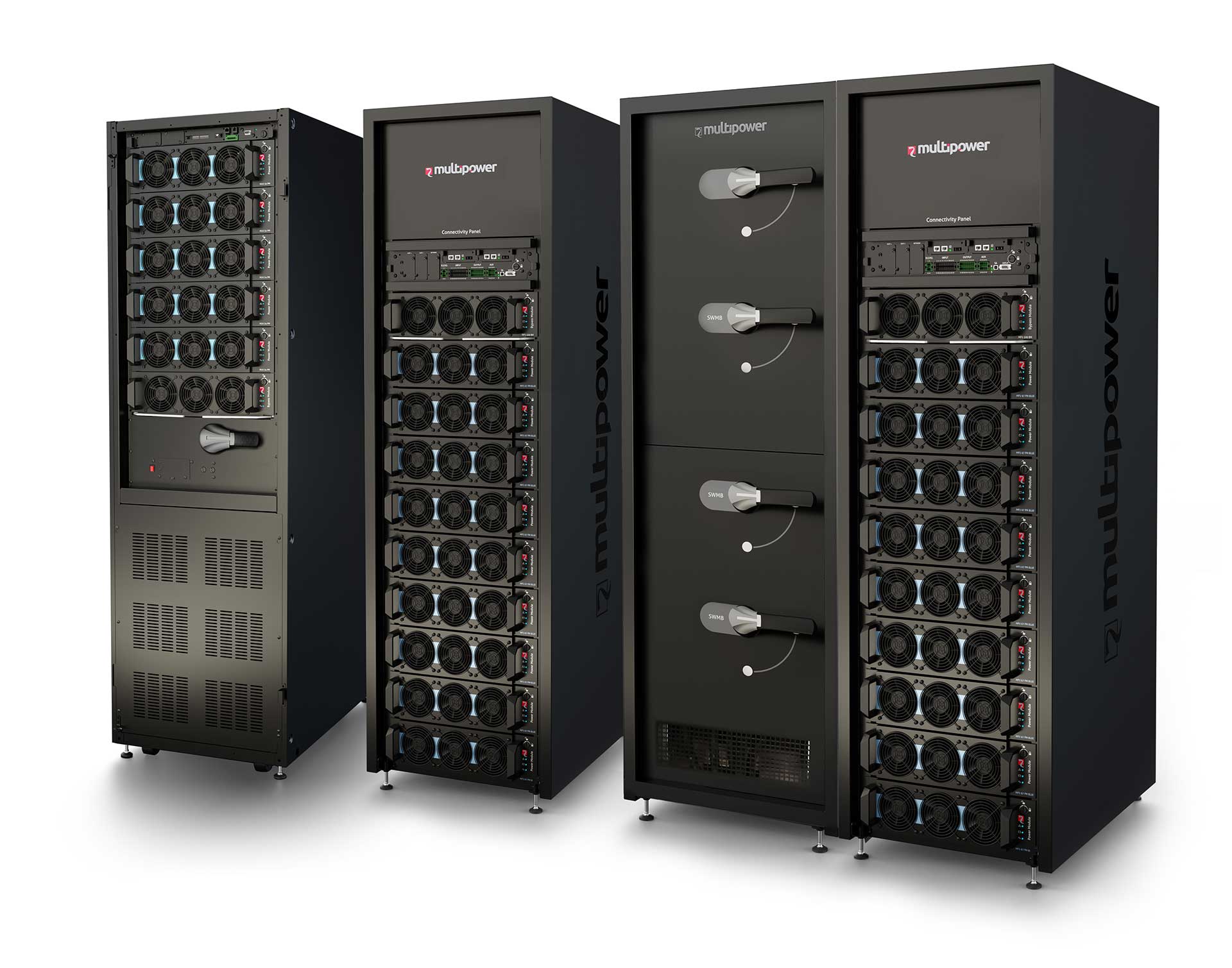

Available in 300-500-600 kW power ratings, several configurations and frames are available:

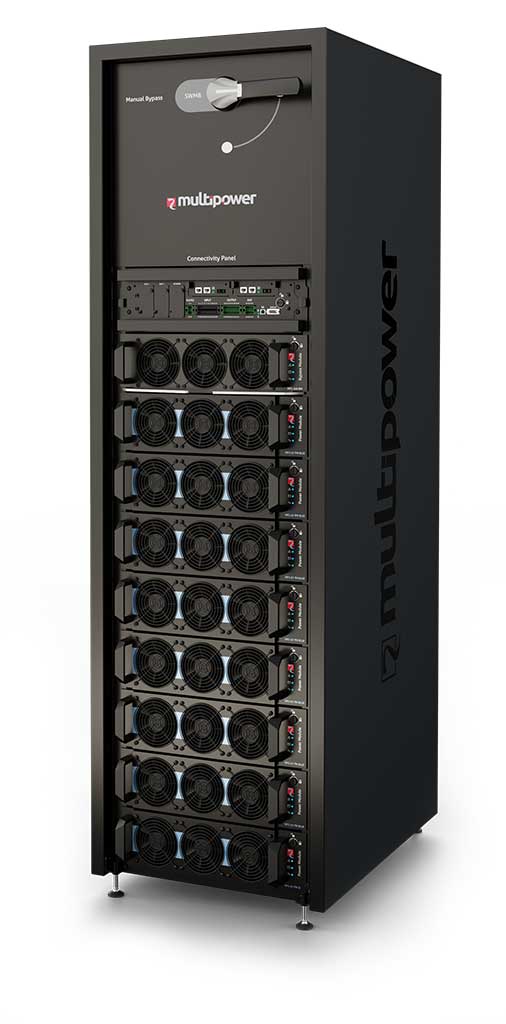

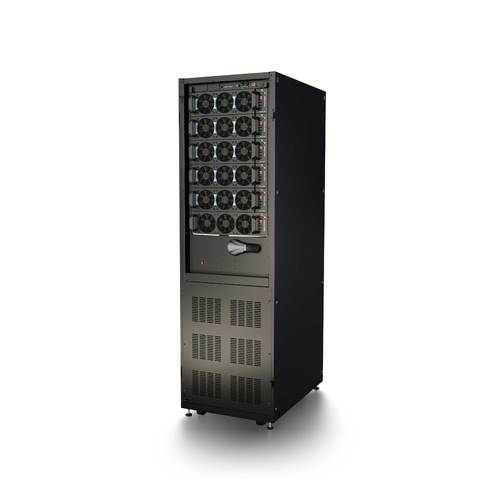

PCM: very compact solution with integrated manual bypass;

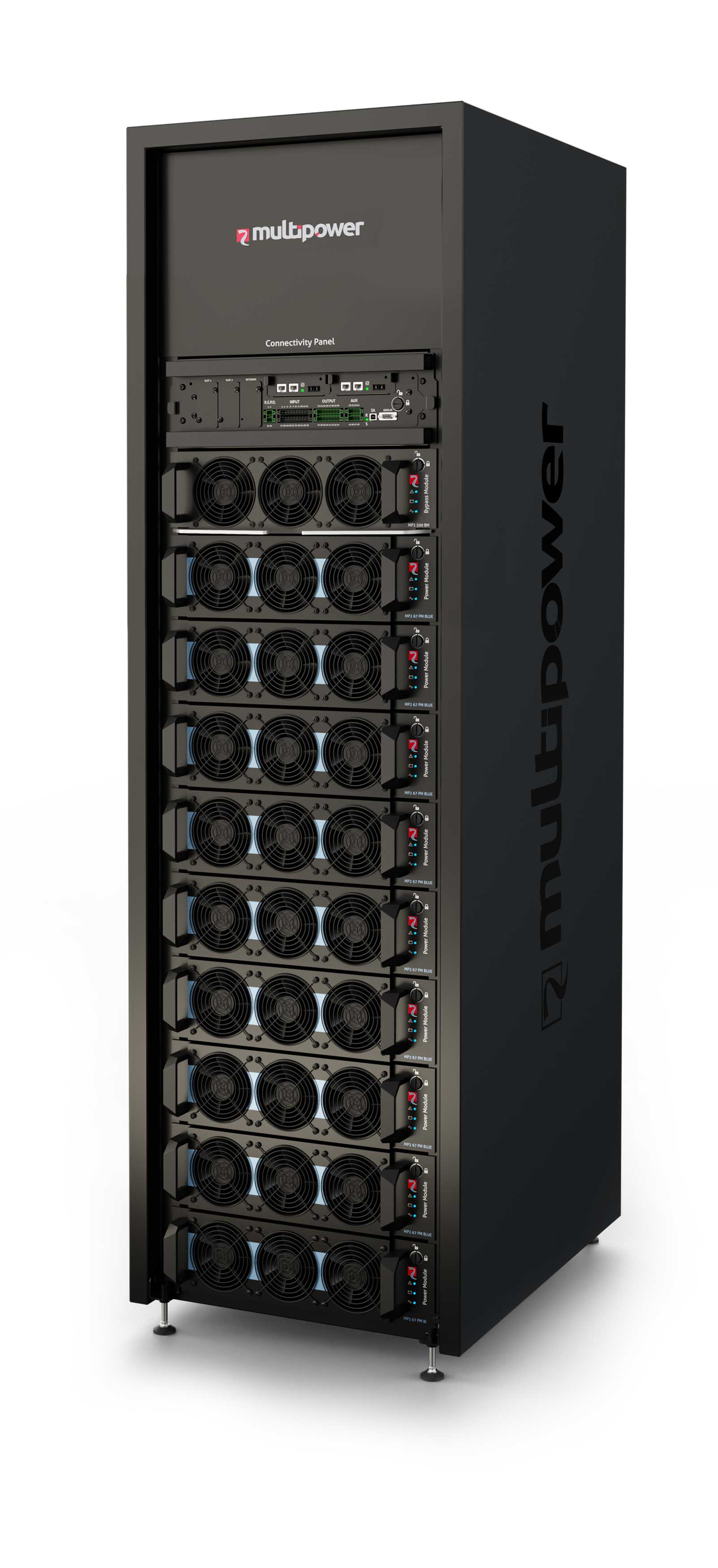

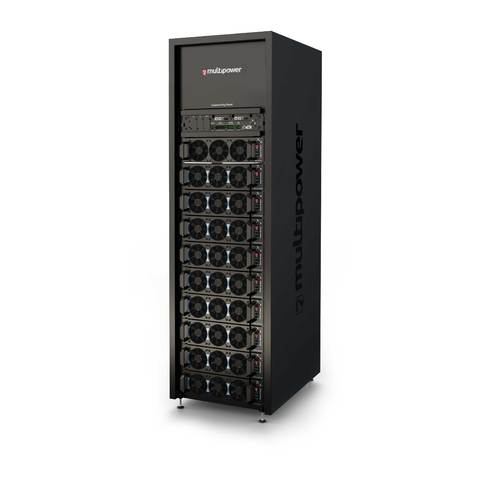

PCO: unit supplied with unique I/O and without switches to simplify the integration with the existing electrical infrastructure and meet any space constraints;

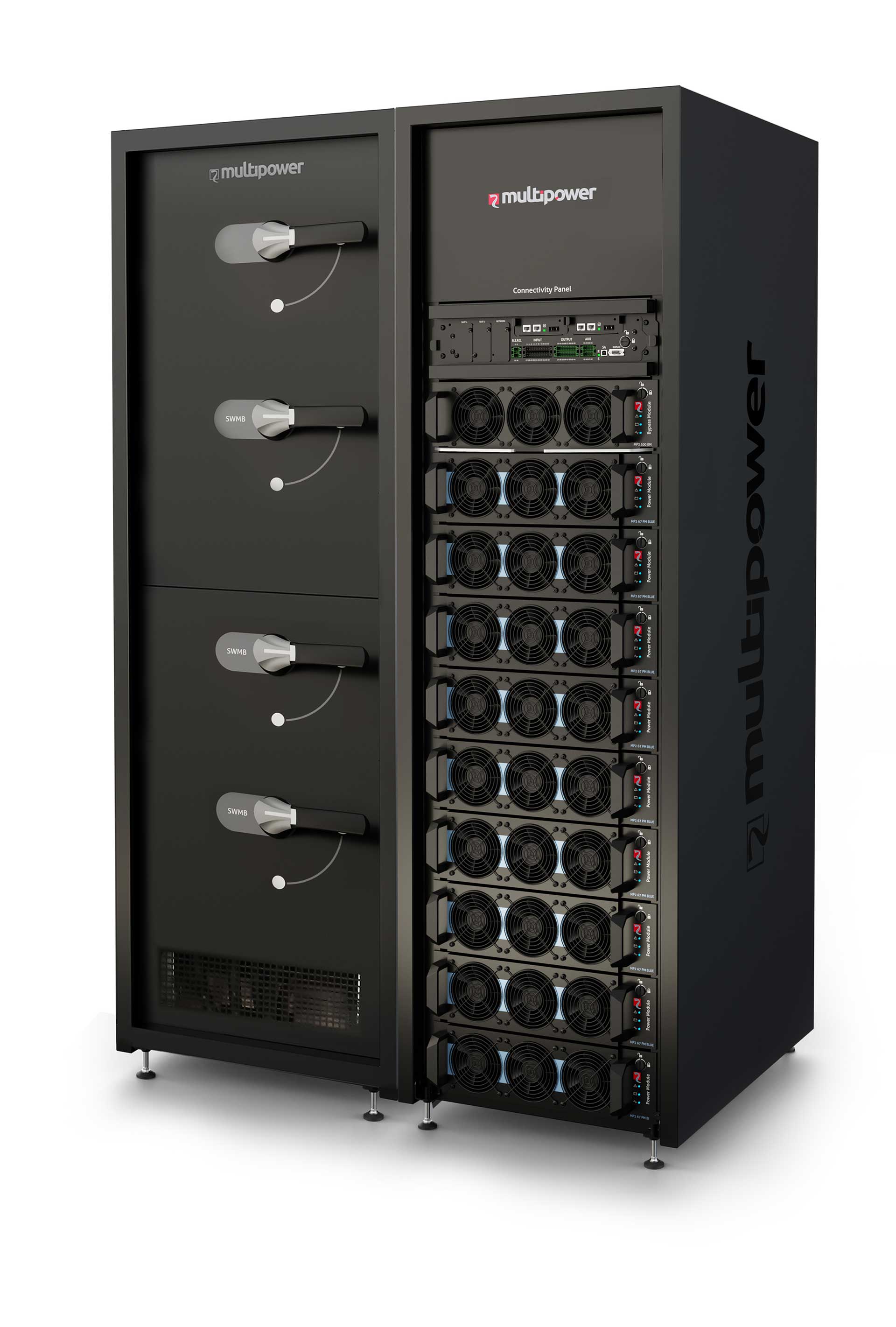

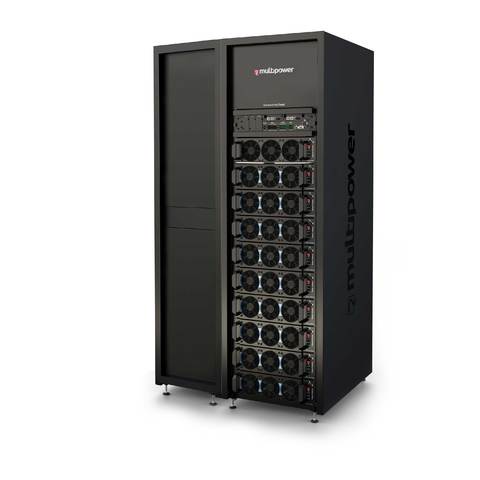

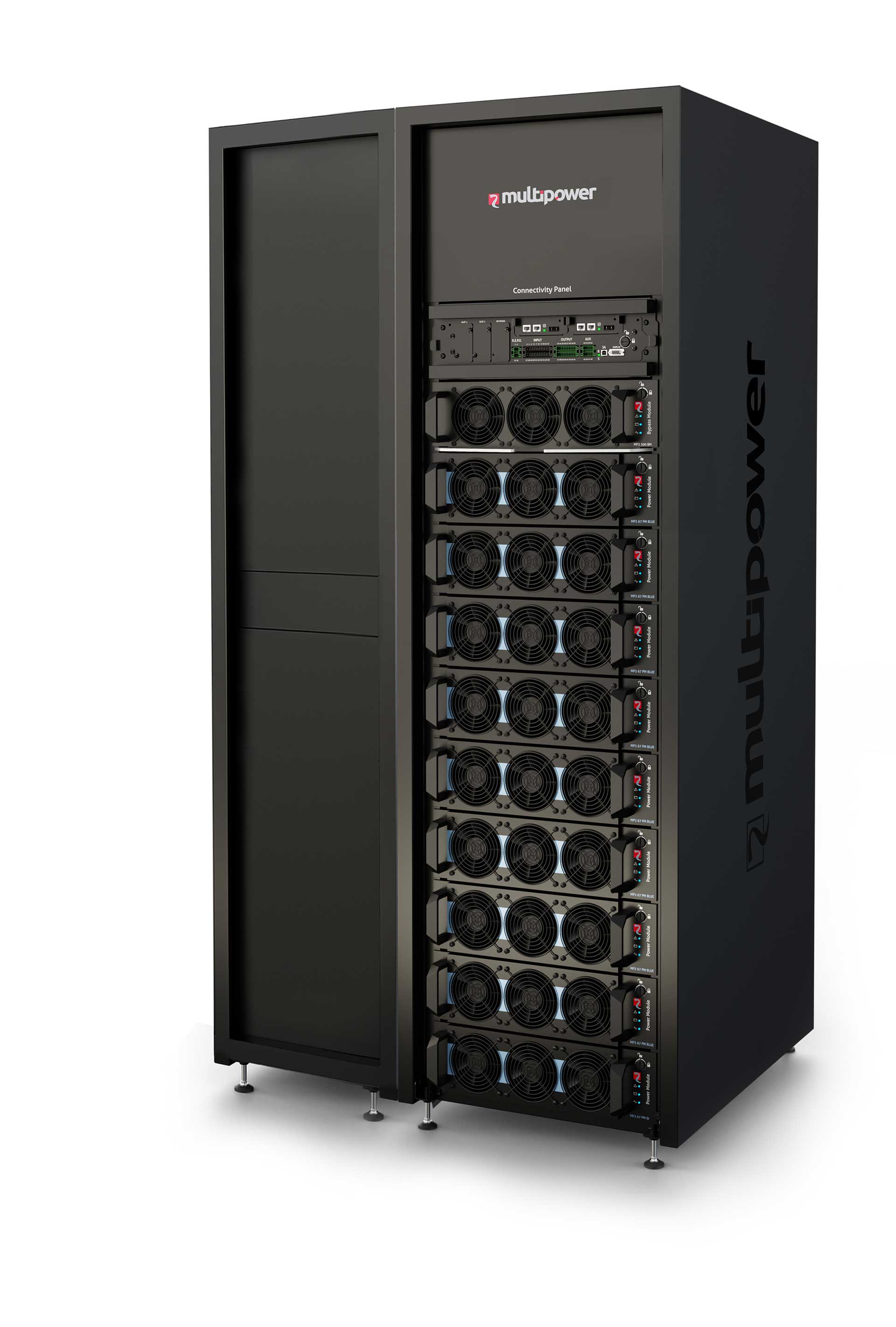

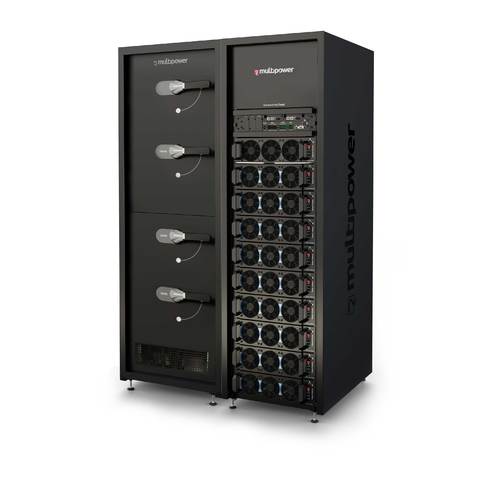

PCS: fully integrated solution for a complete, simple, and reliable installation. Incorporates the main input, bypass, manual bypass and output switches.

Smart Modular Architecture

Multi Power2 is the result of a new design approach focused on a deep interconnection between hardware and software. It provides an extremely reactive system which ensures business continuity in every operating condition.

Intelligence is distributed to ensure the protection of the equipment even on the off chance of a fault on a power module.

Automatic health checks are performed during the plug-in of each module to verify its status and avoid defective components, while the firmware automatically aligns to the latest version as and when additional modules are added to the system.

While thanks to the embedded intelligence, power computing capacity, and outstanding connectivity, we can monitor remotely the status of the UPS and provide bespoke after sales service to help maximise the overall lifespan of the unit.

Downtime-Free Maintenance Guaranteed

Each power module and battery unit is easily accessible from the front of the cabinet and hot-swappable. This ensures any module can be serviced, maintained, or even replaced while the rest of the system continues to protect the load, minimising the Mean Time to Repair (MTTR).

In addition, every connection terminal is accessible straight from the front of the unit to enable safe and easy deployment.
